Product Specifications
Shell & Dimensions
- Material: PC-ABS V0
- Size: 70 × 50 × 31 mm
- Weight: 82 g
Display
| Property | Value |
|---|---|
| Type | TN |
| Size | 1.77 in |
| Active Area | 28.03 × 35.04 mm |
| Resolution | 128 × 160 px |
| Colors | 262K |

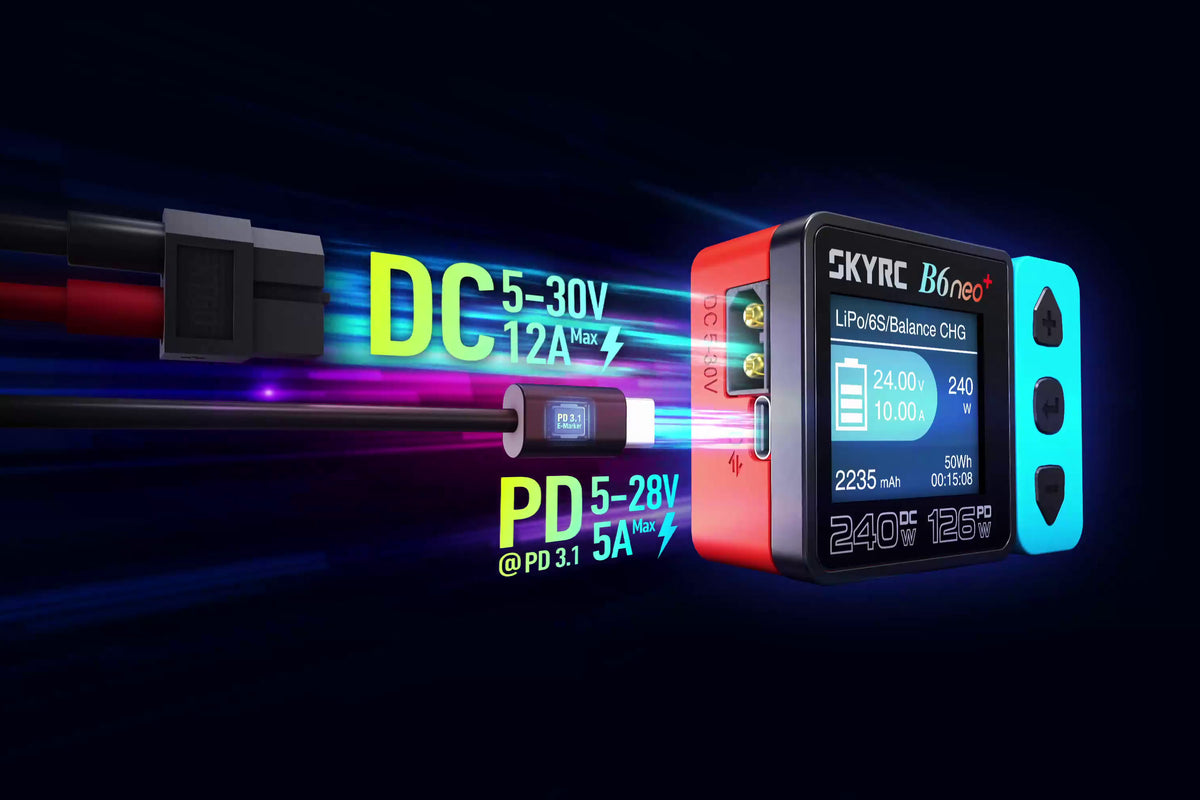

Power
| Input | Spec |
|---|---|
| DC Input Voltage | 5–30 V |
| PD 3.0 / 3.1 | 5–28 V |
Charger Power
- DC: 240 W
- PD: max. 126 W
Discharge Power
- Max: 16 W (based on 6S @ 4.2 V/cell)
Battery Compatibility
| Chemistry | Cells / Series |
|---|---|
| LiPo / LiFe / LiIon / LiHV | 1–6 cells |
| NiMH / NiCd | 2–15 cells |
| Pb | 3S / 6S / 12S |
Charge & Discharge
Charge Current
- LiPo / LiFe / LiIon / LiHV / NiMH / NiCd / Pb: 0.3–10 A
Discharge Current
- LiPo / LiFe / LiIon / LiHV: max. 0.6 A
Balance Current
- LiPo / LiFe / LiIon / LiHV: max. 600 mA
Operation Modes
- LiPo / LiFe / LiIon / LiHV: Balance Charge, Charge, Discharge, Reverse Charge, Storage
- NiMH / NiCd: Charge, Re-peak, Reverse Charge
- Pb: Normal, AGM Charge, Cold Charge, Reverse Charge
